詳細介紹

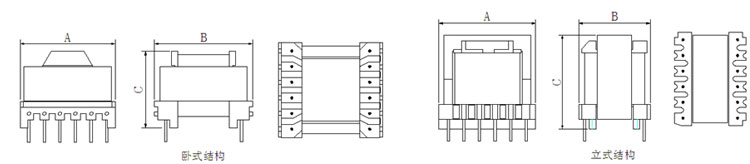

| 規格 | 封裝形式 | 長 | 寬 | 高 | 一次側排針 | 二次側排針 | 排距 | 針徑 | 特別說明 | ||
| A | B | C | 數量 | 針距 | 數量 | 針距 | |||||
| ER9.5-001 | 立式貼片 | 10.0 | 11.5 | 6.0 | 4 | 2.00 | 4 | 2.00 | 11.50 | SQ0.25*0.70 | 貼片 |
| ER9.5-002 | 立式貼片 | 10.0 | 11.5 | 6.0 | 4 | 2.00 | 4 | 2.00 | 11.50 | SQ0.25*0.70 | 貼片 |
| ER11.5-001 | 立式貼片 | 12.0 | 12.2 | 6.0 | 3 | 4.00 | 3 | 4.00 | 12.20 | SQ0.25*0.70 | 貼片 |
| ER11.5-002 | 立式貼片 | 12.0 | 12.2 | 6.0 | 3 | 4.00 | 3 | 4.00 | 12.20 | SQ0.25*0.70 | 貼片 |
| ER11.5-003 | 立式貼片 | 12.0 | 12.2 | 6.0 | 5 | 2.00 | 5 | 2.00 | 12.20 | SQ0.25*0.70 | 貼片 |
| ER11.5-004 | 立式貼片 | 12.0 | 12.2 | 6.0 | 5 | 2.00 | 5 | 2.00 | 12.20 | SQ0.25*0.70 | 貼片 |
| ER14.5-001 | 立式貼片 | 15.0 | 16.0 | 7.0 | 5 | 2.50 | 5 | 2.50 | 16.00 | SQ0.30*0.70 | 貼片 |
| ER20-001 | 立式插針 | 20.5 | 14.5 | 8.5 | 5 | 2.50 | 5 | 2.50 | 16.50 | SQ0.50*0.50 | 貼片 |
| ER20-002 | 立式貼片 | 20.5 | 14.5 | 8.5 | 5 | 2.50 | 5 | 2.50 | 24.80 | SQ0.50*0.50 | 貼片 |
| ER20-003 | 立式插針 | 20.5 | 14.5 | 8.5 | 3 | 3.2/5.0 | 2 | 5.00 | 15.00 | SQ0.50*0.50 | |
| ER25-001 | 立式插針 | 25.5 | 18.0 | 10.0 | 5 | 3.50 | 5 | 3.50 | 14.00 | ?0.60 | |
| ER28-001 | 立式插針 | 28.5 | 18.0 | 11.0 | 5 | 3.50 | 5 | 3.50 | 14.00 | ?0.60 | |
| ER28-002 | 立式插針 | 28.5 | 18.0 | 19.0 | 5 | 5.00 | 5 | 5.00 | 17.50 | ?0.80 | |
| ER28-003 | 立式插針 | 28.5 | 22.0 | 22.0 | 5 | 5.00 | 5 | 5.00 | 17.80 | ?0.80 | |
| ER28-004 | 立式插針 | 28.5 | 23.2 | 30.0 | 5 | 5.00 | 5 | 5.00 | 17.60 | ?0.80 | |
| ER28-005 | 立式插針 | 28.5 | 24.2 | 37.5 | 6 | 5.00 | 6 | 5.00 | 17.60 | ?0.80 | |
| ER28-006 | 立式插針 | 28.5 | 24.2 | 37.5 | 5 | 5.00 | 5 | 5.00 | 17.60 | ?0.80 | |
| EC28-001 | 臥式插針 | 29.6 | 29.0 | 24.0 | 6 | 5.00 | 6 | 5.00 | 25.00 | ?0.80 | |
| EC28-002 | 臥式插針 | 29.6 | 36.5 | 25.3 | 6 | 5.00 | 6 | 5.00 | 30.00 | ?0.80 | |
| EC35-001 | 臥式插針 | 40.3 | 44.0 | 18.0 | 8 | 5.00 | 8 | 5.00 | 35.00 | ?0.80 | |
| EC35-002 | 臥式插針 | 35.5 | 40.0 | 28.0 | 7 | 5.00 | 7 | 5.00 | 34.00 | ?0.80 | |
| EC40-001 | 臥式插針 | 40.5 | 43.5 | 31.0 | 8 | 5.00 | 8 | 5.00 | 35.00 | ?1.00 | |
| EC40-002 | 臥式插針 | 42.5 | 46.0 | 35.5 | 8 | 5.00 | 8 | 5.00 | 35.50 | ?1.00 | |
| EC40-003 | 臥式插針 | 42.5 | 55.0 | 36.0 | 8 | 5.00 | 8 | 5.00 | 46.00 | ?1.00 | |
| ER42-003 | 立式插針 | 42.5 | 30.0 | 47.0 | 7 | 5.00 | 7 | 5.00 | 25.00 | ?1.00 | |
| ER42-004 | 立式插針 | 42.5 | 38.0 | 47.0 | 7 | 5.00 | 7 |
| |||
